Custom

Precision Bonded & Laminated Multilayer Plastic Manifolds

Controlled Fluidics machines precise microfluidic and pneumatic manifolds for aerospace, biomedical, diagnostic, defense & other critical performance applications ISO 9001:2008 registered

SCROLL

Custom Designed Manifolds

0%
    • Fused Multilayer Ultem Manifold

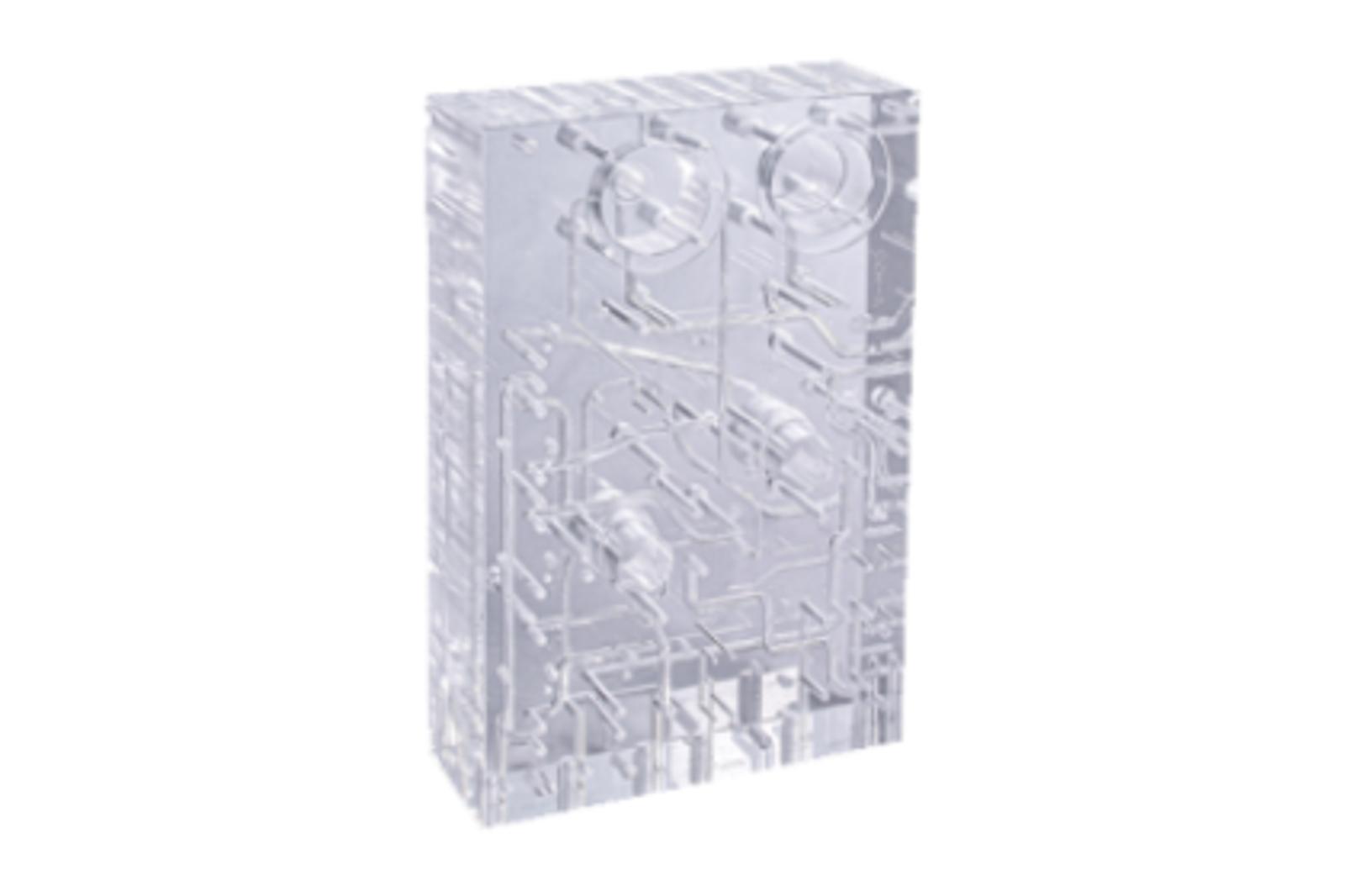

    • Bonded Acrylic Manifold
    • Polycarbonate Medical Device Manifold
    • Acrylic Microfluidic Manifold

    A Case Study

    Challenge
    Learn More

    Challenge

    • Valves to distribute single input to 4 outputs
    • Switches to verify viral presence
    • Room temp high viscosity fluid with particles
    • 25 psi constant pressure

    Design

    • Layout vials to determine starting footprint
    • Design vial/manifold custom interface
    • Layout switch/valve placement
    • Layout input port placement

    Build

    • 2 layers to create full round same length channels
    • 3 values to distribute input to 4 vials
    • 4 switches to detect vial presence
    • 1 barbed fitting to connect to input source
    • 2 screw holes to match with custom mounting bracket

    Solution

    • All valves/switches top mounted
    • All vials bottom mounted
    • Full swept volume with no channel entrapment
    • Mounting points allow easy vial change and manifold flushing
    Solution
    Learn More

    WHAT CAN CONTROLLED FLUIDICS DO FOR YOU?

    Make your manifolds easier to maintain and more affordable to produce. Make your plastic components visually appealing and reliably functional. Impress your customers - Controlled Fluidics can show you how!
