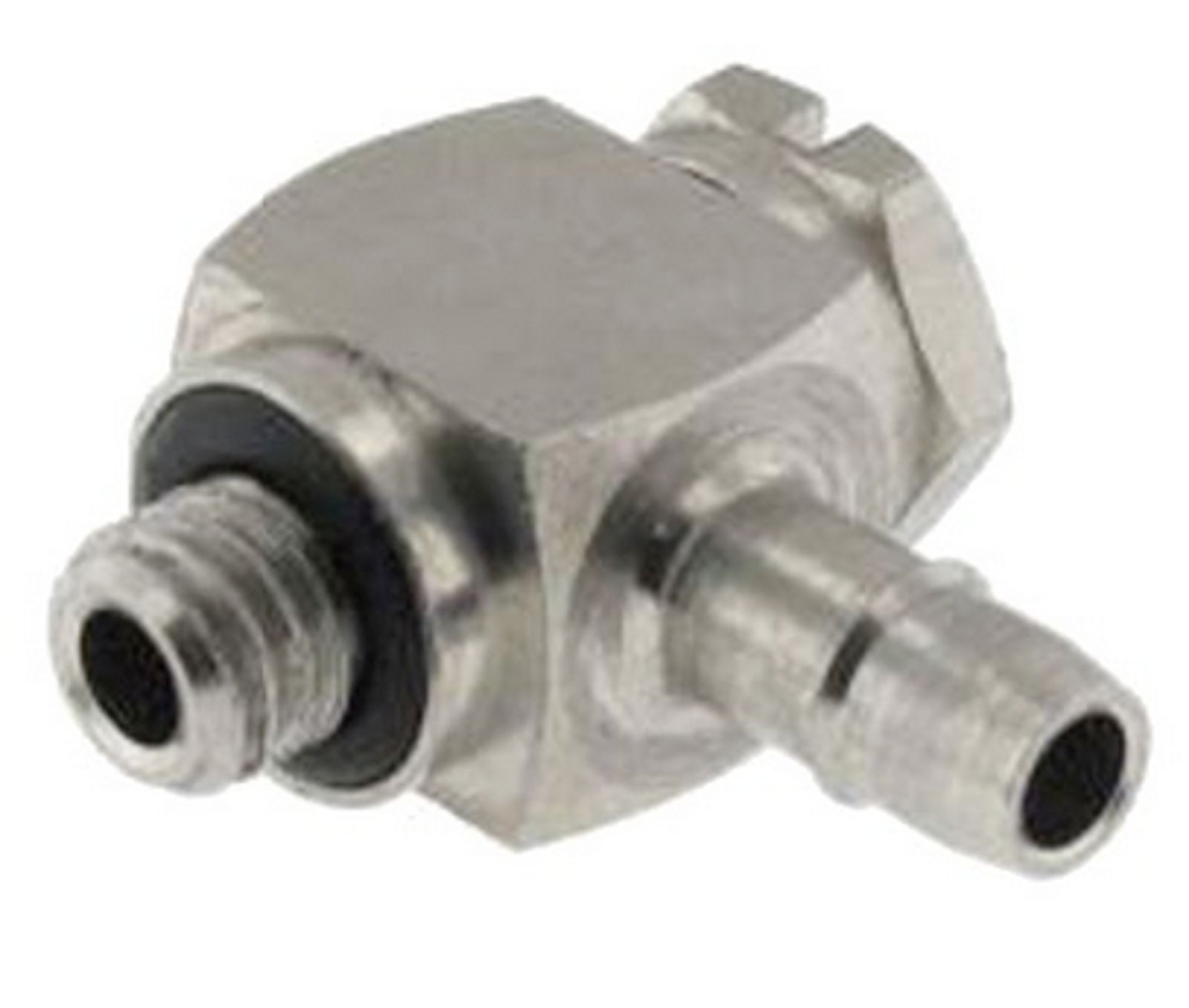

Our barbed elbow fittings are designed specifically for fluidic systems requiring efficient, reliable directional flow control. These fittings allow fluid to be redirected within compact manifold layouts, minimizing space while maintaining a secure, leak-free connection. The adjustable design, combined with high-quality materials, makes these fittings a great choice for many industrial and laboratory fluidics applications.

Here are the key features of our barbed elbow fittings:

Adjustable Position Elbow

The elbow design provides a right-angle connection, excellent for tight or angled spaces where straight fittings may be impractical. With an adjustable position feature, this fitting offers flexibility in installation, granting precise orientation for the barbed end in the desired direction. This adjustability helps optimize fluidic flow within confined spaces, simplifying the setup and maintenance.

10/32 External Thread

The 10/32 external thread is a widely used standard that gives the fitting seamless integration with a range of plastic fluidics manifolds and tubing setups. This ensures compatibility and a secure attachment, reducing the risk of leaks and disconnections during operation.

Buna-N O-Ring

Featuring a Buna-N (Nitrile) O-ring, these fittings create a robust seal that prevents fluid leakage while offering chemical resistance. Buna-N is particularly well-suited for varying temperatures and pressures, ensuring reliable performance in demanding fluidic applications.

303 Stainless Steel Body and Slotted Stud

The 303 stainless steel construction offers excellent corrosion resistance, making it a top choice for applications exposed to moisture or chemicals. The material’s strength enhances durability, while the slotted stud design facilitates easy assembly and adjustment with standard tools, making it convenient for both installation and adjustments.

Here are the key benefits of our barbed elbow fittings:

Enhanced Flow Control in Compact Spaces

The elbow design combined with the adjustable positioning permits precise fluid direction in confined areas. This featuree maximizes space and reduces potential fluid interference points within the system.

Durable, Corrosion-Resistant Construction

The 303 stainless steel body and Buna-N O-ring ensure longevity, even in harsh environments. This durability minimizes maintenance needs and prolongs the service life of the fitting.

Secure, Leak-Resistant Connections

The barbed end, Buna-N O-ring, and 10/32 threading work together to create a tight seal that reduces the risk of leaks, ensuring smooth operation and reducing costly downtimes.

Barbed elbow fittings are meant for a range of fluidics applications, including:

Microfluidics and analytical instrumentation
Chemical processing and distribution systems
Medical and laboratory devices
Industrial fluid control systems

Available in a variety of sizes, our barbed elbow fittings can be customized to fit specific tubing diameters or manifold configurations, ensuring compatibility with your unique system requirements.
