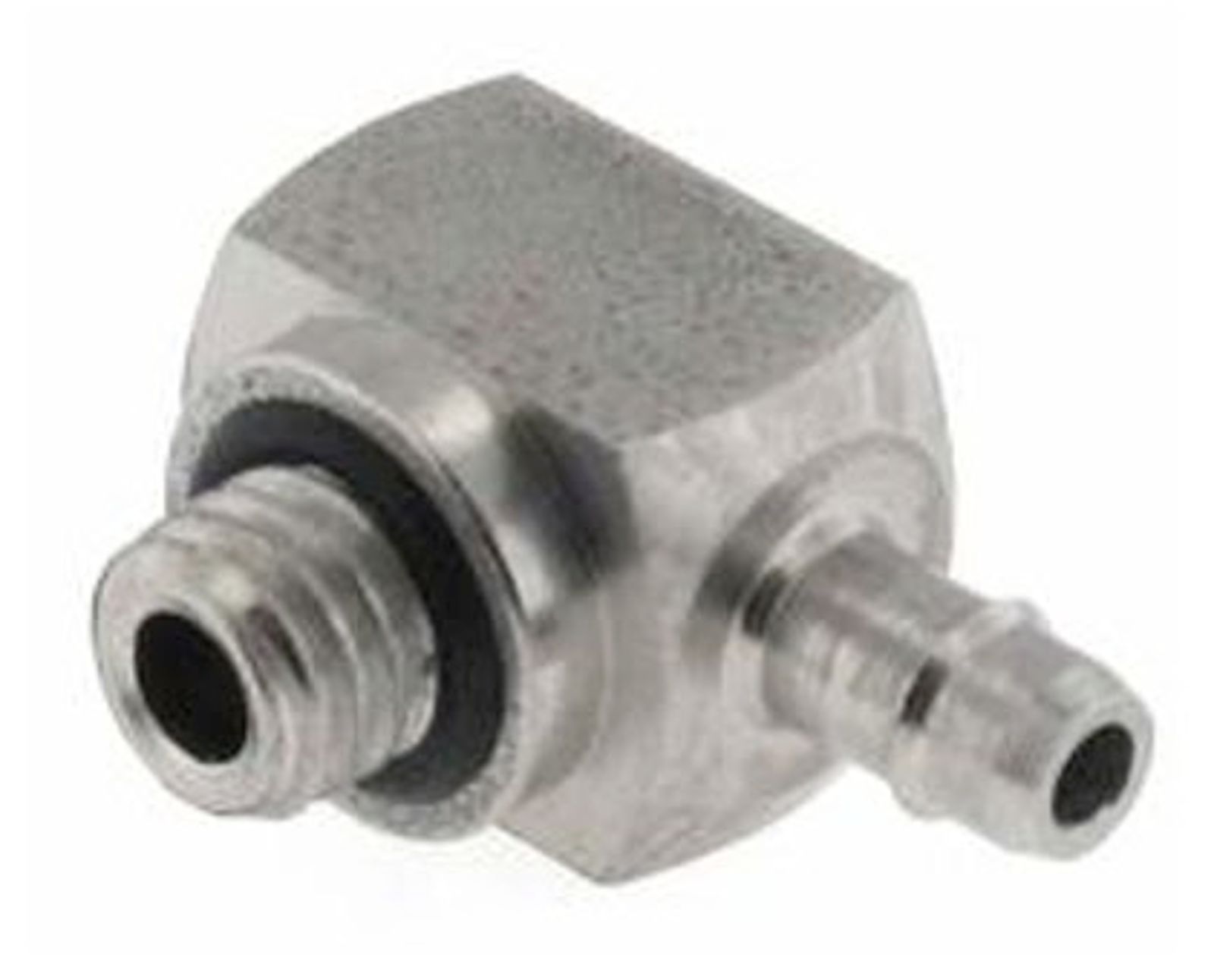

BARBED ELBOW LOW PROFILE FITTINGS FOR PLASTIC FLUIDICS MANIFOLDS

Here are the key features of our barbed elbow low profile fittings:

Low Profile Adjustable Position Elbow

The low-profile elbow design minimizes the required space, making these fittings best for tight or crowded manifold configurations. The adjustable elbow positioning gives precise orientation within confined setups, enhancing flexibility during installation and improving flow efficiency in compact fluidic systems.

10/32 External Thread

Featuring a 10/32 external thread, these fittings are compatible with a wide range of fluidics manifolds, providing a secure attachment that reduces the risk of disconnections or leaks. The 10/32 threading is a reliable standard for fluidic connections, making it easy to integrate with existing equipment.

Dual Buna-N O-Rings

Equipped with two Buna-N (Nitrile) O-rings, this fitting offers enhanced sealing capability, minimizing the risk of leaks even under varying pressures. The Buna-N material provides excellent chemical resistance and maintains a reliable seal across an extensive range of temperatures, ensuring leak-free performance in demanding applications.

303 Stainless Steel Construction

Built with 303 stainless steel, these fittings are highly resistant to corrosion and oxidation, making them durable enough to withstand exposure to moisture, chemicals, and other harsh environments. The robust construction extends the life of the fitting, cutting down on maintenance needs and ensuring long-term reliability.

Here are the key benefits of our barbed elbow low profile fittings:

Space-Efficient Design

The low-profile, adjustable elbow design enables efficient fluid routing in compact spaces, making it great for applications where space constraints are a challenge. This design minimizes potential interference points and simplifies manifold layouts.

Enhanced Leak Prevention

With two Buna-N O-rings, these fittings provide an additional layer of sealing protection, significantly reducing the chances of leaks. This dual-seal design is especially useful for systems where there are common pressure fluctuations.

High Durability for Demanding Environments

The 303 stainless steel body not only provides exceptional strength but also resists corrosion, even in chemical or humid environments. This durability contributes to a longer service life, reducing replacement and repair costs.

Low profile barbed elbow fittings are suitable for a variety of industries and applications, including:

• Medical and diagnostic equipment
• Microfluidics and laboratory instrumentation
• Chemical and fluid processing systems
• Industrial and commercial fluid control systems

These low-profile fittings come in a range of sizes to fit various tubing diameters, and we offer customizable options to ensure the most optimal fit for your specific system requirements.
