ULTEM BONDED PLASTIC & MANIFOLDS

Due to its high performance and ease of manufacturing, ULTEM® is an excellent choice for manifolds and reusable plastic components. ULTEM® provides a higher level of performance than their polycarbonate, polysulfone, and acrylic counterparts based on several qualities.

• Flame resistant
• UV stable
• Great performance at high temperatures (up to 171°C or 340°F)
• Excellent dimensional stability
• High tensile strength
• Highly resistant to most chemical types
• Sterilizable
• Biocompatible & FDA compliant grades available
• Takes polishing processes well

• High Performance Thermoplastic

Rigid, amorphous resin with high tensile and flexural strength. ULTEM 1000 doesn't have reinforced material like glass, but it still retains great durability and performance.

• FDA Compliant

For uses that need FDA compliance, ULTEM can meet their rigid standards for medical, pharmaceutical, and diagnostic use.

• Heat and flame resistance

Performs continuously up to 171°C (340°F) before becoming compromised. Also has a high limiting oxygen index (LOI), and it works to self-extinguish once removed from an ignition source.

• High dielectric strength & arc resistance

Retains function over wide frequency and voltage range

• Tolerates high internal channel pressure
• Capable of glass fiber reinforcement (ULTEM 2300)
• Versatile & easily machined
• Recyclable

FOR ULTEM® 1000

Tensile strength (at yield, 23ºC (73ºF))

15,200 to 17,000 psi

Tensile Modulus of Elasticity (at yield, 23ºC (73ºF))

Up to 500,000 psi

Flexural Modulus (of Elasticity)

480,000 to 500,000 psi

Glass Transition Temperature

Stable to 200°C (392°F). Can reach up to 217°C (422°F).

Continuous Service Temperature in Air

165°C (330°F) to 171°C (340°F)

Heat Deflection Temperature (@ 264 psi)

200°C (392°F) to 204°C (400°F)

VO Flammability

UL-94

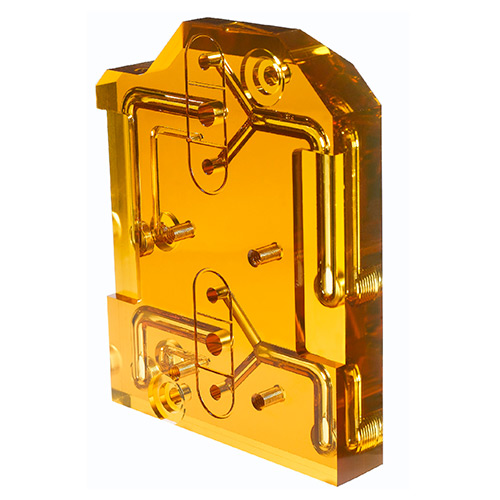

ULTEM® can be difficult to see through, especially if the manifold is over 1 inch thick. The material can start as a very dark amber and can look "blacker" the thicker or more layers a component gets. This unfortunately makes channel and internal feature inspection difficult.

Round, square, and singled-sided D-channels are all possible to 0.020 inches. Internal pressures to 150 psi are possible, depending on channel size. Large cavities and bonded-in components are available, but the design must be high-heat tolerant.

A note about cost: ULTEM® also costs much more than other plastic resins that manufacturers process, usually doubling the cost of acrylic. Multi-layer designs increase costs sharply after two layers.
