NAVIGATING CUSTOM PLASTIC COMPONENT & MANIFOLD DESIGN

Which Type Is Right For Your Application?

When it comes to designing fluid systems for a variety of applications, one decision remains of high importance: choosing the right manifold construction method. The choice between single-layer machined, multilayer bonded, and 3D printed manifolds is more than simple aesthetics or convenience. It also fundamentally impacts your product's performance, timeline, cost, and ability to scale.

Let's dive into the latest insights that can help you make this decision with confidence.

Understanding the 3 Main Types of Plastic Component Construction

Typically, designers hear about 3 different types of plastic manifold and component construction: single-layer, multilayer, and 3D printed. Single-layer manifolds (SLMs) are machined from a solid block of plastic and (depending on the material) have excellent strength and dimensional stability for straightforward designs. Multilayer manifolds achieve design complexity by joining  multiple machined layers together through bonding via solvent, adhesive, or diffusion. Manufacturers like us generally choose diffusion bonding over others as the process joins materials at the molecular level without adhesives. 3D printing builds components layer by layer from digital plans and enables fantastic design freedom. However, 3D prints have some trade-offs in material clarity and high-volume efficiency, to name a few.

That’s not to say that every design will call for one over the other consistently as it is heavily dependent on several factors. We take the following into consideration to aid in choosing the right type of construction:

  1. Complexity of design,
  2. Pressure requirements,
  3. Clarity needs,
  4. Budget considerations, and
  5. Time-to-market.

These all have significant roles in determining which approach will serve your project best. We highly recommend that you weigh these factors with great care before selecting your type. Otherwise, it could considerably hinder the product’s performance. To avoid this outcome, we have 3 key insights below.

Single-layer manifold made from polycarbonate

Which Manifold Design Is Right for You?

Download the visual guide to get quick insights about where to go with your project.
Download the Infographic

Key Insight #1: Fluid Dynamics Excellence Through Design Freedom

With traditional single-layer manifolds (SLMs), they’re limited to straight drilled channels with sharp 90° corners, marking an inheritance from conventional machining capabilities. This can act as a barrier for some more complex designs. However, the limitations from the drilling process are not necessarily a disadvantage. The uniformity of the material often gives the component higher burst pressure capabilities and fatigue resistance over time. As there are no bonded surfaces (no matter the method), this implies a lower risk of failure due to reduced potential leak paths. This can then offer more long-term reliability.

Conversely, where SLMs often diverge is the 3D printed and multilayer constructions' capabilities in complex and dense channel design. Having these capabilities means that both 3D and multilayer can also fundamentally improve how your fluids flow through your system. Modern 3D printing and multilayer bonding techniques enable smooth, curved internal channels that dramatically enhance fluid dynamics, especially after the polishing process for appropriate materials. Certain curved flow path designs can significantly influence fluid behavior and improve performance metrics (such as pressure drop, mixing, and transport efficiency) compared with traditional straight channels, depending on geometry and application. Engineers can reduce turbulence and pressure drop by eliminating these sharp 90° corners, which means your systems typically consume less energy and operate more efficiently. This translates directly into operational savings and performance gains.

While the benefits of enhanced flow and greater design freedom are evident regarding multilayer and 3D printed components, SLMs can extend some other benefits in matters of accessibility for maintenance. Put simply, channel routing within SLMs is explicit and inspectable. Bonded plastic products can hide or restrict access to internal defects that could affect performance and troubleshooting. If something happens to break down, SLMs grant fewer hidden areas to investigate that could delay operations if a system is experiencing downtime whether for repairs or maintenance.

alternative fuel micro bonded manifold.webp
Bonded alternative fuel manifold

Key Insight #2: Pressure Rating, Clarity, & Longevity Directly Impacts Material Selection

Your choice of construction method inherently limits your material options, and this constraint carries some implications for application suitability.

For factors like pressure ratings, SLMs and multilayer construction can support products needing to meet those expectations with a greater range of materials due to material uniformity (depending on the bonding method). They can also maintain superior strength for high-pressure applications, handling pressures up to 420 bar, though pressure tolerance varies by material. Not all plastics are built to withstand that kind of pressure, regardless if it's single-layer, multilayer, or 3D-printed. As a quick comparison, aluminum approaches 250 bar, while steel and cast-iron handle up to 420 bar.

When it comes to pressure ratings for 3D printed components, recent advances in resin-based 3D printing have shown that some post-processing techniques (such as thermal or UV post-curing) can enhance mechanical properties like strength and stiffness. This enables resin-printed parts to perform more effectively in demanding applications when the right materials and processes are appropriately selected. These kinds of components excel where transparency isn't as important as internal geometries are. However, with these postproduction additions, these can add up in timelines and in cost.

Concerning transparency and clarity, SLMs can achieve upper clarity levels (Grades 3 and 4) with a broader range of materials. Those like acrylic (PMMA) and polycarbonate can become transparent more easily than other materials while still offering great mechanical advantages as an SLM. These materials set the standard for applications requiring visibility into internal channels and are usually most common because of their high-grade clarity capability. Other materials, though, can offer similar clarity levels with additional features that may be more suited for your project.

Transparent amber-colored diffusion bonded polysulfone plastic microfluidic chip with multiple CNC machined channels, circular inlets, and ports on its surface, shown on a white background.
3-Layer Bonded Polysulfone Manifold

In the case of multilayer bonded manifolds, they can have up to Grade 3 clarity, but the bonding process limits material choices. Some plastics cannot be diffusion bonded, such as  Rexolite or polypropylene, and can only be machined at this time because they are unable to withstand the heat and pressure involved. Yet diffusion bonding works exceptionally well with several high-performance plastics. For example, ULTEM® (PEI) provides excellent  tensile strength paired with exceptional thermal and chemical resistance, properties particularly valuable in medical applications, and can withstand the diffusion bonding process. Because diffusion bonding creates bonds at the molecular level without solvents or other adhesives, the resulting component exhibits essentially the same thermal and chemical resistance properties as well as clarity as the base polymer. This enables robust performance without requiring protective coatings while still offering transparency when needed.

3D printed manifolds present a different trade-off considering clarity. Higher clarity grades (Grades 2+) are generally unavailable due to the nature of resin-based printing materials. 3D-printed products typically don’t take polishing well as their surface structure, material state, and internal molecular architecture render the process ineffective. As polishing subtracts material, it tends to damage the component through layer exposure, heat exposure, and/or abrasion to create uneven surfaces and structure exposure, threatening the component’s integrity.

The major constraint in clarity in 3D printed parts matters primarily for applications requiring visual flow monitoring. Components used in medical diagnostics, life science instruments, and analytical equipment often depend on real-time visibility. In this way, SLMs or multilayer approaches are more suitable for these functions.

Understand the Trade-Offs Before You Design

Download the infographic to see which would suit your project better.
Download the Infographic

Key Insight #3: Cost-to-Value Optimization Changes Dramatically at Different Production Scales & Development Phases

The economics of custom plastic component manufacturing reveal two often-overlooked truths: the "best" choice today may not be optimal at scale, and prototyping strategy fundamentally influences total program cost.

Most successful engineers begin with a 3D printed prototype. This approach lets you validate functionality, test pressure performance, and confirm design assumptions before committing capital to bonding or tooling investments. The prototype reveals whether your system truly needs multilayer complexity or can perform adequately with simpler single-layer construction. That decision then cascades throughout your program cost structure, ultimately affecting your project’s bottom line and ROI. Why would you over-spec a particular feature when a simpler one will perform the same function at a lower cost without more risk?

For proof-of-concept and validation phases, 3D printing delivers great value with its lower per-unit cost not being the only advantage. In several real-world examples, companies have compressed months of development into weeks while cutting costs. This acceleration matters enormously, especially in a world where innovation happens extremely quickly. Early error detection before production investment minimizes the cost of rectifying design flaws, and reducing iteration cycles saves both material and labor costs.

For short-run production and complex modular designs, multilayer bonded components shine. While the bonding process requires more time than single-layer machining, it eliminates the need for extensive tubing and multiple separate components within a system. This consolidation dramatically simplifies the entire assembly, reduces leak points, and improves reliability. OEMs consistently report that multilayer designs not only reduce system size but also total cost of ownership by that consolidation. Without high maintenance needs or continuous parts replacements (e.g. plastic tubing), multilayer construction simplifies what would otherwise be a complex system more prone to error.

For higher volume production (i.e. >10K pieces), simpler designs in single-layer machining maintain their cost advantage. The faster machining process and simpler setup make them economically optimal when design complexity doesn't justify the investment in bonding or printing.

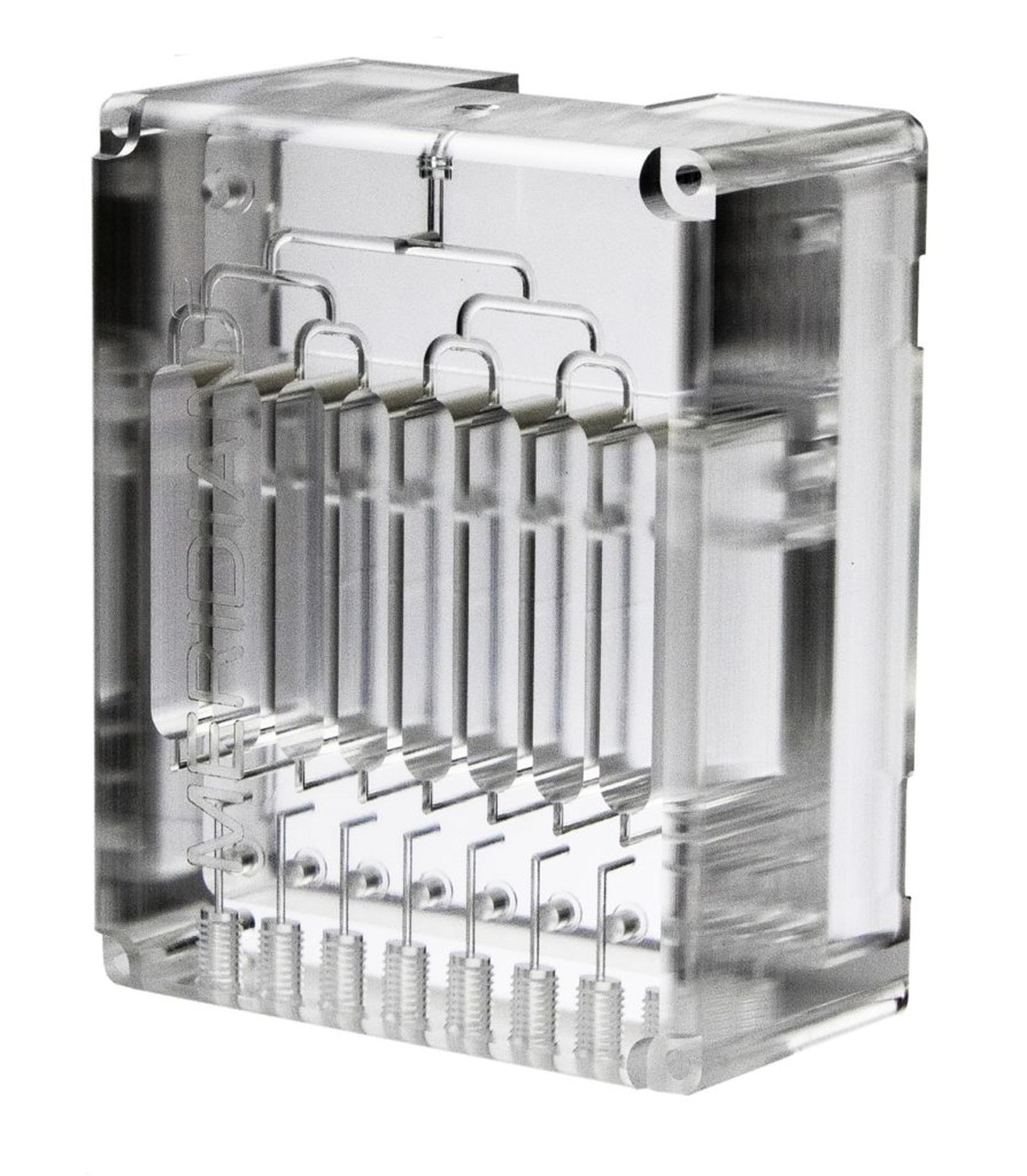

3 Layer Bonded Manifold with Reservoirs

The Sustainability Dimension Worth Considering

Beyond traditional cost-benefit analysis, environmental factors increasingly influence manufacturing decisions. This is especially true in  laboratory, medical, and other sectors where regulatory compliance and corporate responsibility standards continue to tighten.

Multilayer bonding supports sustainability objectives by enabling material optimization through design flexibility. Engineers can specify thinner walls where possible, integrate conformal cooling channels, and eliminate unnecessary internal void spaces. Each design optimization reduces material consumption and gives rise to a new device that can operate most effectively and efficiently.

Making Your Decision

The framework is straightforward.

  1. Start with 3D printing for rapid validation (or have your design virtually validated through our partners at Flow Circuits), then
  2. Evaluate whether your final production requirements demand the investment in bonding infrastructure or would benefit from single-layer simplicity.
  3. Consider your material requirements in mechanical, thermal, chemical, and pressure properties to suit the product’s purpose.

Some Tips

If Grade 4 clarity and extreme pressure ratings are essential, single-layer machining serves as your best option. If you're designing complex internal channel networks with multiple fluid paths in a compact footprint, multilayer bonding delivers superior integration and reliability.

For teams working on applications where material properties matter enormously (such as aggressive chemicals, extreme temperatures, and other high-stress environments), the design flexibility of multilayer bonding through diffusion bonding offers advantages worth the added complexity and cost.



The construction you select should ultimately reflect a sophisticated optimization considering time-to-market, cost structure, performance requirements, material constraints, and manufacturing scale. With access to the latest research on fluid dynamics optimization, material science advances, and proven real-world applications across several sectors, you can see the path forward. Your engineering team now has the insights to make a decision that serves not just today's requirements but also scales with your vision for tomorrow.

Prefer a Visual Summary?

Download the infographic to see side-by-side comparisons easily.
Download the Infographic
